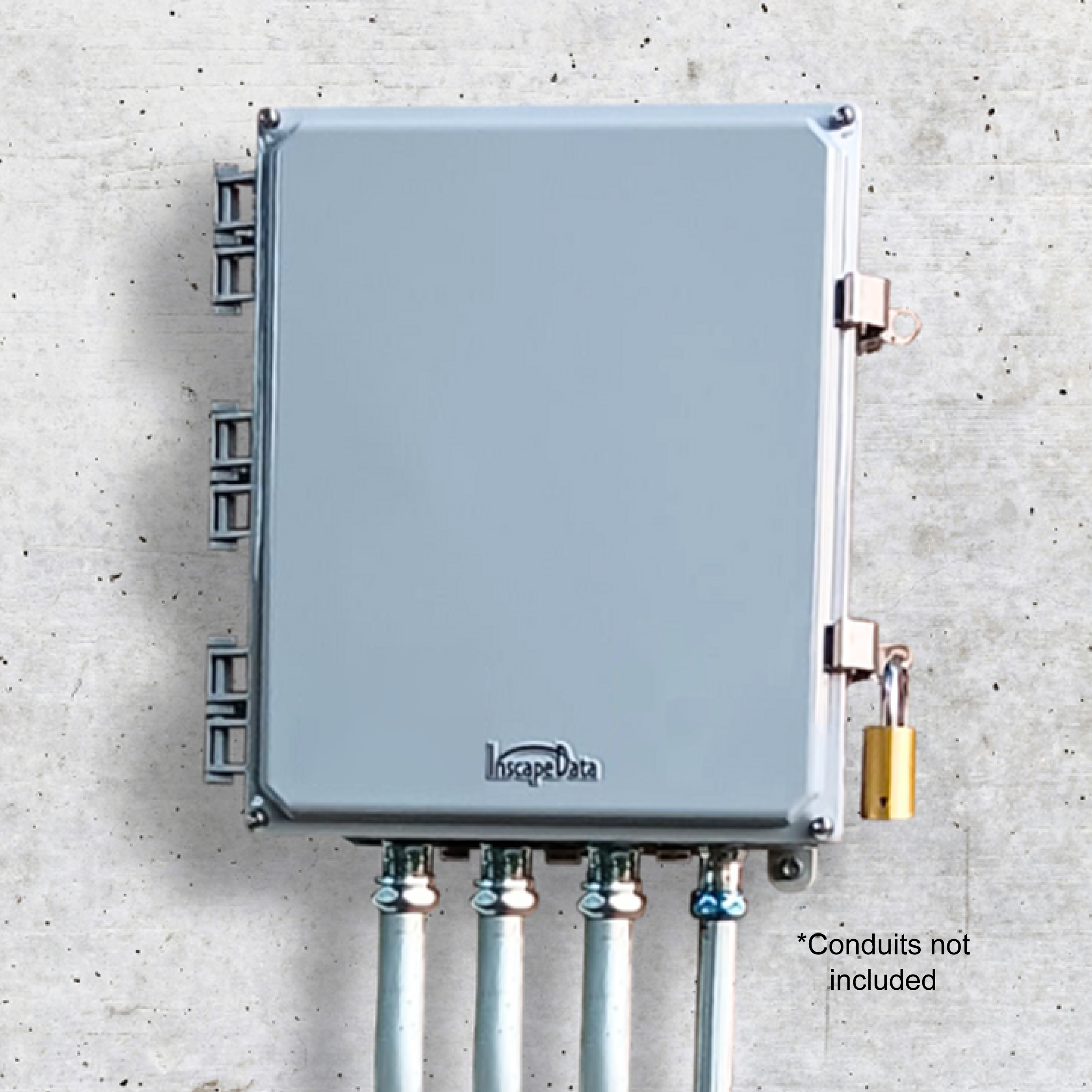

The LinkPower™ LPS2802AF-T1 is All Weather 10-Port Gigabit PoE (Power over Ethernet) Switch with 8 Gigabit PoE Ports and 2 SFP Fiber Optical Uplink Ports is the industry first outdoor weatherproof high speed gigabit Ethernet switch that delivers data and power up to 30W per PoE port (limited to 150W for a total of 8 PoE ports) over one single network cable protected with an IP68 compliant weatherproof enclosure.  The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure.  The LPS2802AF-T1 all weather Gigabit PoE switch is designed for industrial and commercial applications, e.g., video surveillance, remote security, wireless mesh, and carrier wifi installations. The remote manageable features offered by the LPS2802AF-T1 will greatly reduce the daily maintenance cost.

LPS2802AF-T1 All Weather 10-Port Gigabit PoE is an unmanaged network switch is designed to meet the accelerating demand for powering the most demanding outdoor PoE devices for up to 30W per PoE port and is limited to 150W for total eight PoE ports. LPS2800AF-T1 All Weather Gigabit PoE Switch provide internal LED displays that show device status for easy power management and troubleshooting. The PoE technology conveniently eliminates the need to install networked devices, such as Inscape Data’s IP cameras and SB300/BR300, and SB3000/BR3000 wireless products, thereby reducing equipment and installation costs.

NOTE: The LinkPower™ LPS2802AF-T1 delivers up to 30W and an average of 15.4W per PoE port and is limited to 150W for a total of 8 PoE ports.   If your application requires more than 15.4W to 30W per PoE port, please consider the LPS2802AT-T1 model with 240W for a total of 8 PoE ports.

In The Box:

• LPS2802AF-T1 (1)
• WM0001 Wall Mounting Kit (1)
• MMK0001-L Pole Mount Kit (1) (Optional)
• AC Power Cord with one 3-PIN AC Power Connector (1)
• DC Power Cord with one 4-PIN AC Power Connector (1) (Optional)
• User Manual (1)
• Warranty Sheet (1)

LPS2802AF-T1 Datasheet
